Steel Functional Manual Wheelchair

Product features：

(1) Frame: the frame adopts the specification of Φ 22*t1.2mm iron pipes are welded into shape, the main surface of the frame is electroplated, and the whole vehicle can be folded left and right;

(2) Cross pipe; The main body of the cross pipe is welded with 22*t2.0mm iron pipe and flat iron. The double cross structure makes the structure stable and beautiful while reducing the cost;

(3) Seat back cushion: it is made of double-layer black honeycomb nylon cloth, with canvas lining for reinforcement and high tensile strength, and built-in sponge to increase riding comfort. The seat cushion tube is an open tube, and both ends of the seat cushion directly penetrate into the whole face to bear force, so as to avoid the seat cushion sagging and collapsing after sitting for a long time. The calf belt is widened by 90mm, and the legs are more comfortable to lean on;

(4) Brake: the driving wheel is equipped with a new type of iron brake, and the hand push tube is used Φ 22*t1.2mm iron pipe, equipped with thickened PVC handle, with soft surface and more comfortable use;

(5) Handrail: equipped with Black PU short bend handrail pad, the handrail can be lifted back, which is convenient for the user to move and close to the table;

(6) Foot pedal: the black plastic particle foot pedal is adopted. The height of the foot pedal can be adjusted and turned. There are 6 adjustment gears. The foot pedal body can be rotated to the side and can be quickly removed;

(7) Front wheel: plastic reinforced front fork, equipped with 8-inch PVC space wheel, axle height 38, tire width 40, outer diameter 190, gray wheel frame, black PVC smooth tire;

(8) Rear wheel: European straight drum with 36 spokes, foggy silver aluminum frame, 24 Inch Black PU tread tire, 4-claw reinforced black plastic wavy hand ring, more comfortable to use;

(9) The rear and lower part of the frame is equipped with an obstacle crossing pedal device, which makes it easy to tilt the car when crossing the sill and obstacles;

(10) Safety device: equipped with safety belt.

Product parameters：

Service state width (CM): 60

Width of folded state (CM): 28.5

Seat width (CM): 43

Rear wheel diameter (CM): 61

Front wheel diameter (CM) :20

Cushion height (CM): 50

Cushion depth (CM): 40

Total length (CM) :103

Total height (CM): 92

Backrest height (CM) :41

Maximum load (kg) :120

Net weight (kg): 16.2

Carton l*w*h (CM) :81.5*29*76

pc/ctn: 1

Certificate：ISO13485/ ISO9001/ TUV/FDA/ CE

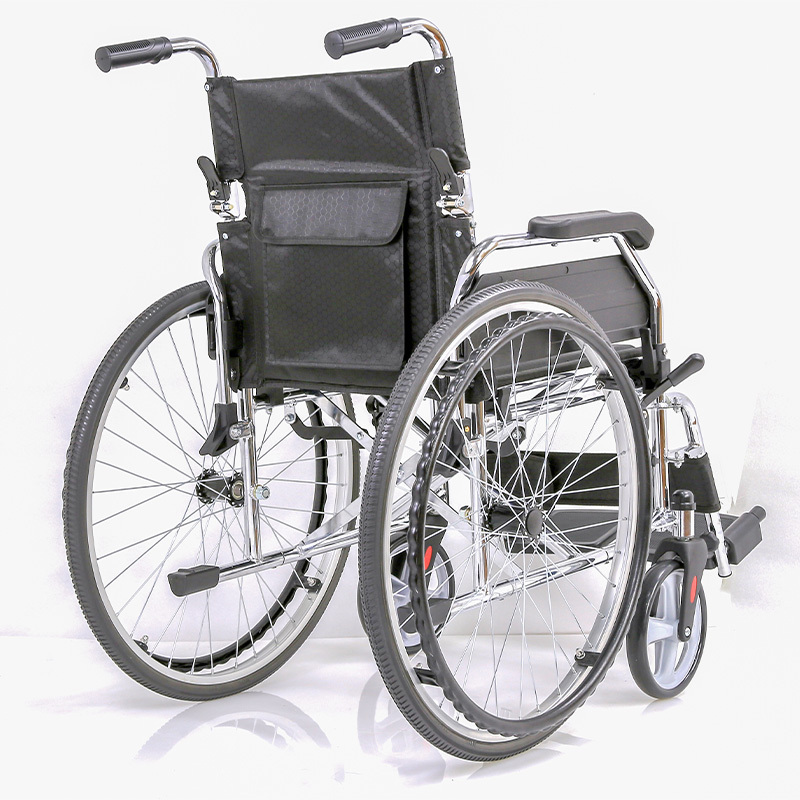

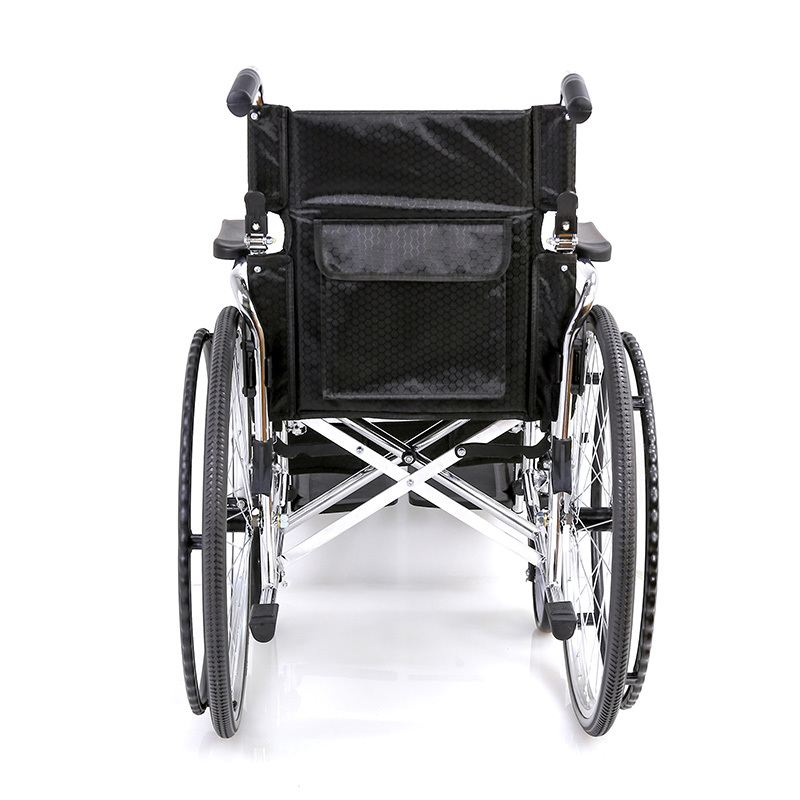

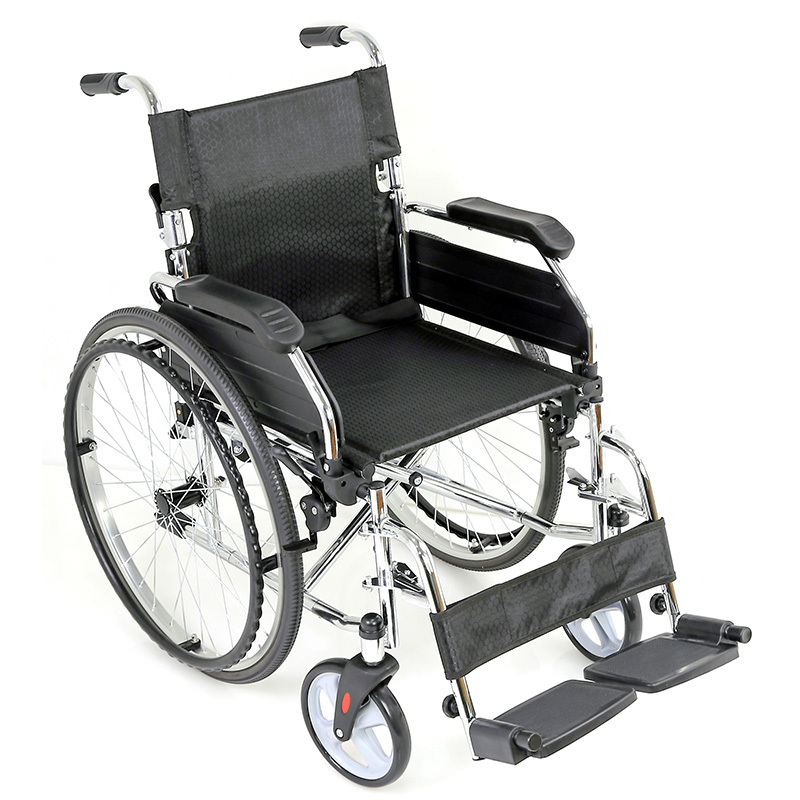

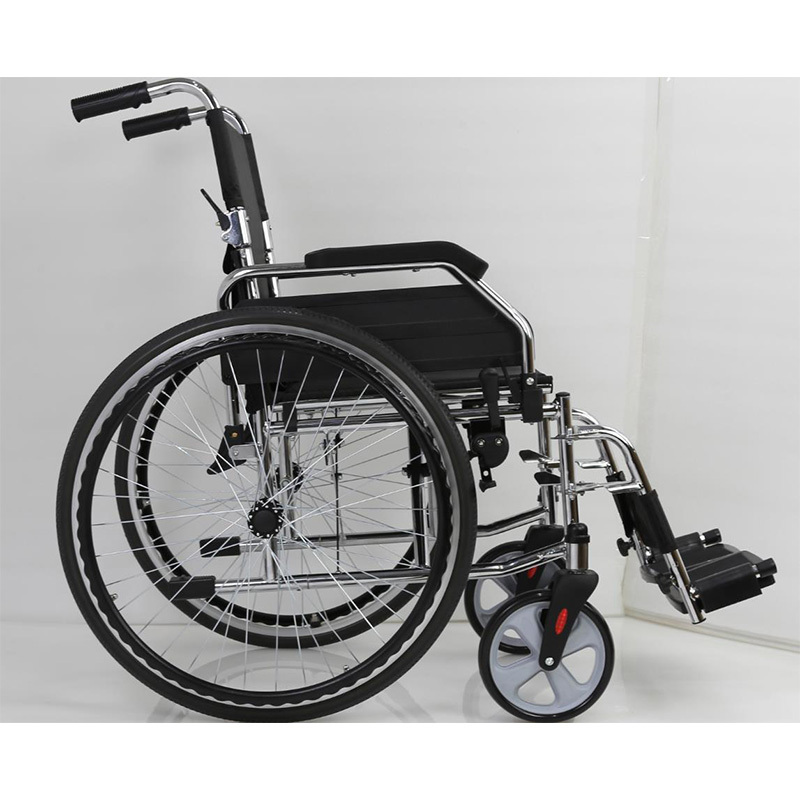

Product detail picture:
