Cost-effective Transport Wheelchair with Lightweight Aluminum Frame

Product features：

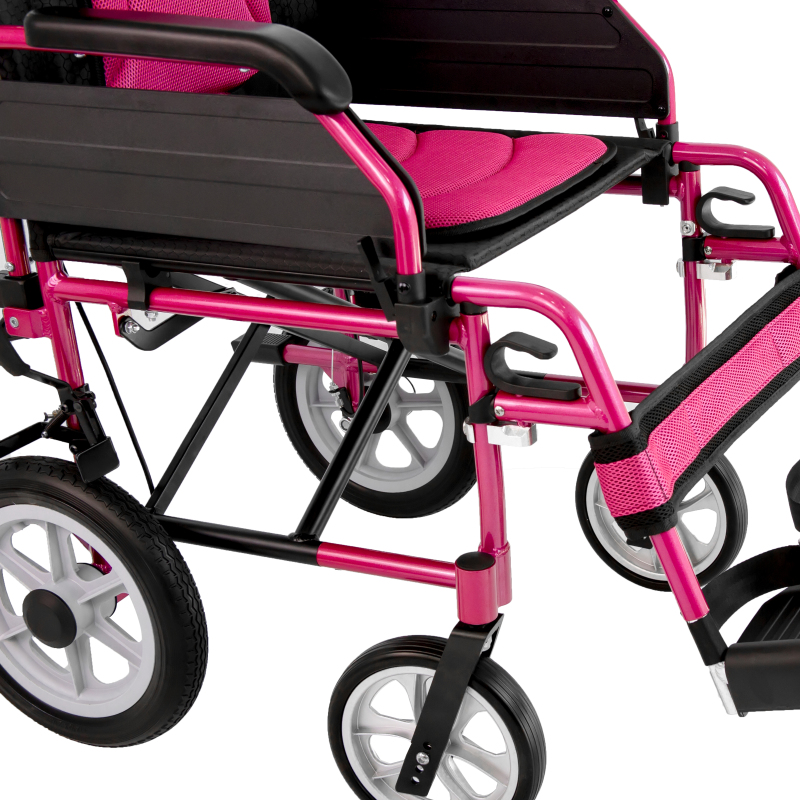

(1) Frame: The frame is welded and formed by aluminum alloy round tubes with specifications of Φ22.2*T2.0mm. The surface of the main body of the frame is oil-sprayed with silver-blue flashing. The whole vehicle can be folded left and right.

(2) Cross tube; the main tube of the cross tube is welded and formed by Φ22.2 round tube and 18*11 aluminum alloy square tube. The double cross structure has a large stress area and the frame is more stable.

(3) Seat back cushion: Made of double-layer black honeycomb nylon cloth with canvas lining inside to reinforce the tensile strength. The seat cushion tube adopts an open tube. Both ends of the seat cushion directly penetrate the entire surface to bear force, so as to avoid sitting for a long time. The seat cushion is sagging and collapsed, and the calf strap is widened to 90mm in width, making the legs more comfortable to lean on. An additional 30mm thick breathable mesh removable seat back pad increases comfort and is easy to clean.

(4) Brakes: Iron brakes, equipped with torsion springs for flexible return, the push tube is made of Φ22.2*T2.0mm aluminum alloy round tube, equipped with PVC thickened hand grip, the surface is soft and more comfortable to use.

(5) Armrest: The armrest tube is made of Φ19*T1.5mm aluminum alloy round tube, equipped with black extended PU curved armrest pad, which is comfortable to use and easy to wipe and clean.

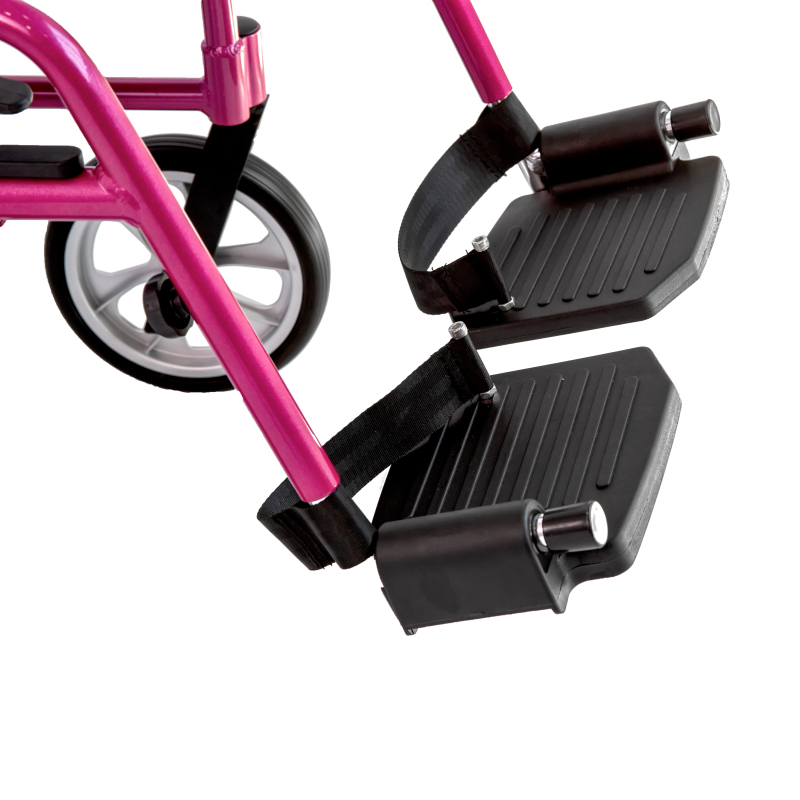

(6) Foot pedal: The material is impact-resistant PP. The height of the foot pedal is adjustable and flippable. It has 5 adjustment gears. The main body of the foot pedal can be rotated to the side and can be quickly removed.

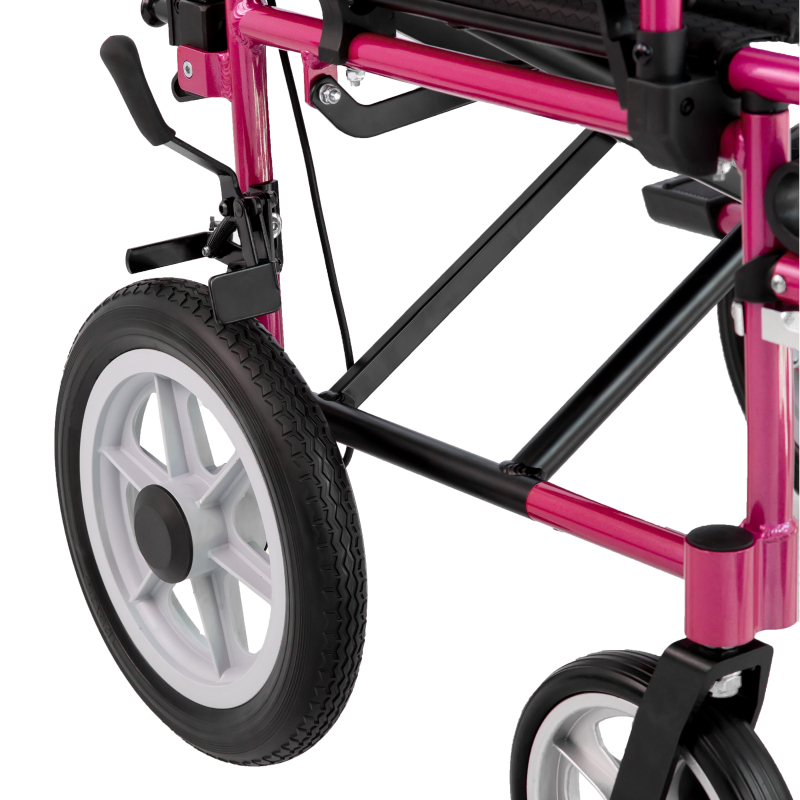

(7) Front wheel: Aluminum alloy front fork, front wheel diameter Φ200mm, tire width 40mm, PU thickened and widened wear-resistant straight grain shock-absorbing tires.

(8) Rear wheel: 304mm (12 inches) diameter wheel.

(9)Safety device: Equipped with safety belt.

Product parameters：

Service status (CM): 57.5

Folded state (CM) : 26

Seat width (CM): 46

Rear wheel diameter (CM) : 30.5

Front wheel diameter (CM): 20

Cushion height (CM): 53

Cushion depth (CM): 40

Total length (CM): 92

Total height (CM): 94

Backrest height (CM): 41

Maximum load (kg): 120

Net weight (kg): 12.9

Carton (CM) :69.5*28.5*78.5

pc/ctn： 1

Certificate：ISO13485/ ISO9001/ TUV/FDA/ CE
