Comfortable Aluminum Rollator With Seat

Product features：

The utility model has the characteristics of portability and flexibility, and is suitable for the elderly and the people with walking difficulties as a non powered walking aid for walking and shopping.

The main frame adopts 51.4*26*1.3mm thick oval pipe φ It is made of 25.4*1.4mm thick aluminum alloy pipe, and the surface is painted. The seat cushion is made of wood and foam, and is wrapped with PVC. Handrail tube φ 22x2.0 thick, with wire brake, 6 height adjustment holes. The height of the four holes of the front and rear wheels is adjustable. The backrest can be lifted to save folding space. Nylon mesh shopping bag, easy to disassemble, wash and replace.

1) Parking performance ≥ 7 °, driving braking performance ≤ 0.5m.

2) All wheels must land smoothly.

3) Static stability: longitudinal ≥ 15 °, lateral ≥ 6 °.

4) Sliding offset ≤ 350 ㎜

5) Minimum turning radius ≤ 0.65M

6) Minimum conversion width ≤ 1.5m

Product parameters：

Total width (CM): 60

Total length (CM) :55-63

Folded state (CM): 22

Seat width (CM): 43

Front wheel diameter (CM): 20.3

Rear wheel diameter (CM): 20.3

Seat cushion height (CM) :59-67

Backrest height (CM): 84-92

Total height (CM): 84-92

Maximum load (kg) :100

Net weight (kg) :6.7

Carton (CM) :60*54*18

pc/ctn： 1

Certificate：ISO13485/ ISO9001/ TUV/FDA/ CE

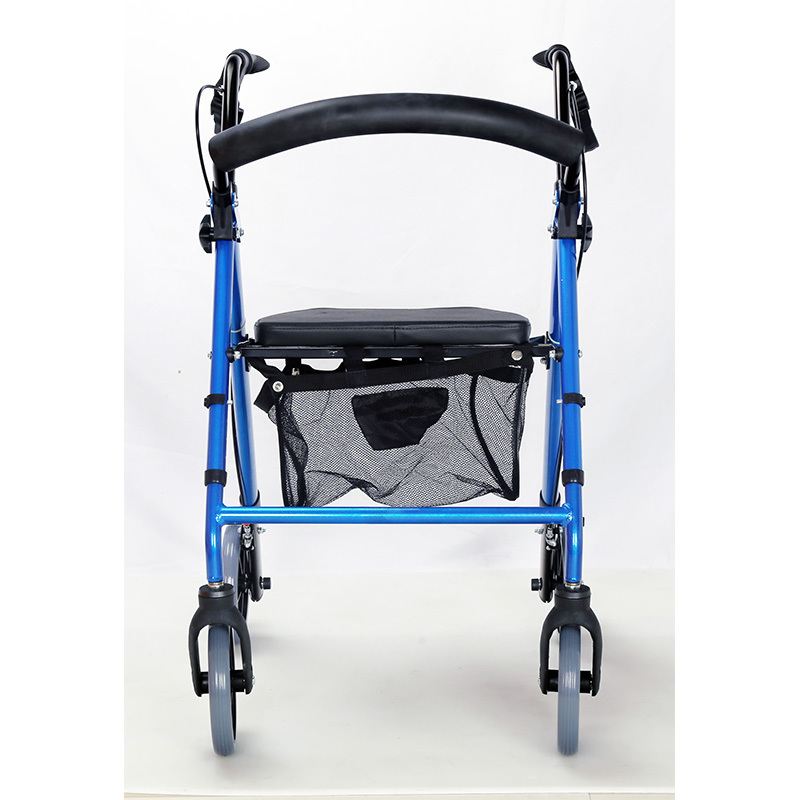

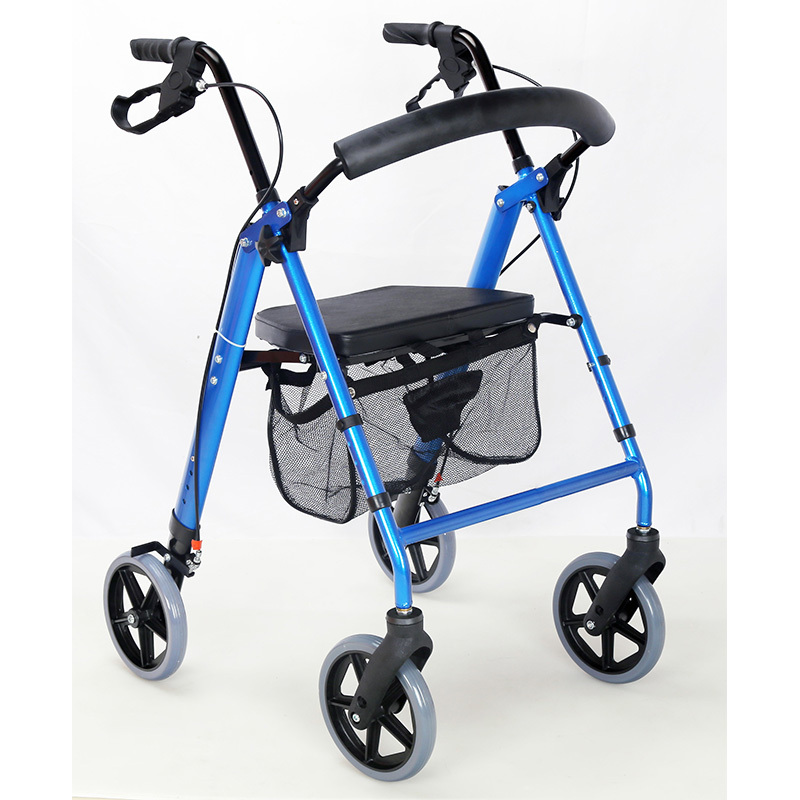

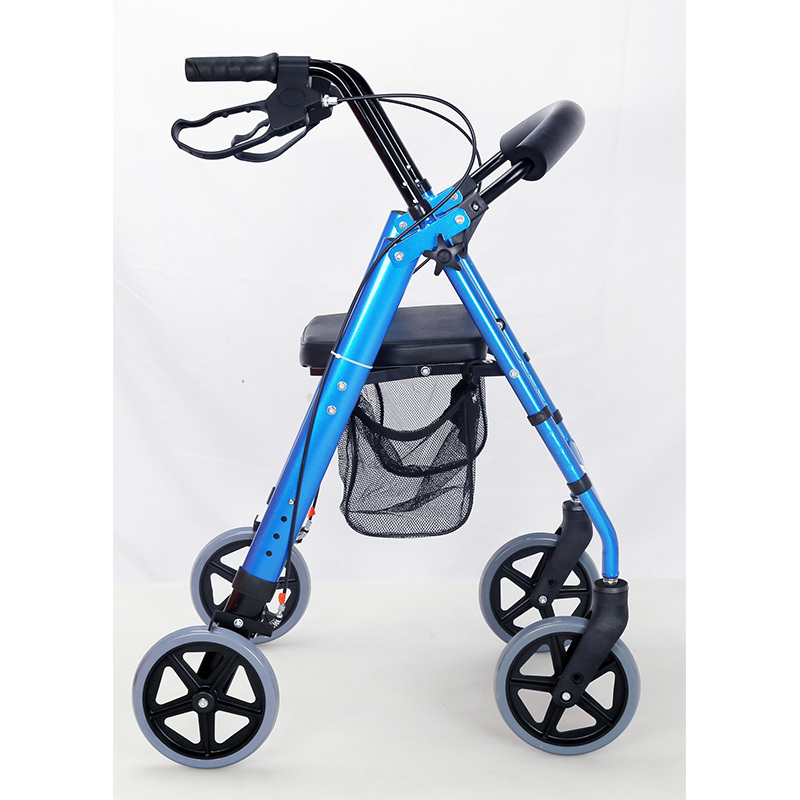

Product detail picture：

• Comfortable Aluminum Rollator
• lightweight walker with seat and brakes
• lightweight Rollator with wheels and seat
