Comfortable Aluminum Functional Wheelchair

Product features：

Frame: the frame adopts two kinds of high-strength aluminum alloy elliptical flat tubes with specifications of 40x20mm and 25x18mm, which are integrally welded. There are few welding points. The bottom tube of the frame has a beautiful arc shape. The main surface of the frame has an anodized fog surface, and the whole vehicle can be folded left and right;

Cross pipe; 40x20mm aluminum alloy square pipe is used as the main pipe of the cross pipe. The thickened wall thickness is t2.0mm. The square pipe has a large stress area and the frame is more stable;

Seat back cushion: it is made of atmospheric double-layer lattice cloth, with canvas lining for reinforcement and high tensile strength, and built-in sponge to increase riding comfort. The seat cushion tube is an open tube, and both ends of the seat cushion directly penetrate into the whole face to bear force, so as to avoid the seat cushion sagging and collapsing after sitting for a long time. The calf belt is widened by 90mm, and the legs are more comfortable to lean on;

Brake: the driving wheel is equipped with elbow type electroplated iron brake, which is equipped with torsion spring for flexible return, and the hand push tube adopts Φ 22*t2.0mm aluminum alloy round pipe, equipped with ergonomic concave convex gray black butterfly handle, made of TPR, with soft surface and more comfortable use. The rear handle is equipped with continuous brake handle, with parking self-locking function, safe and reliable;

Handrail: the handrail tube is made of 25*18mm aluminum alloy elliptical flat tube, which is wider and stronger. It is equipped with black matte PVC leather handrail pad. The surface of the handrail pad is anti-skid litchi pattern, and the lining is equipped with thickened sponge. It is comfortable to use and easy to clean. The handrail can be lifted back, which is convenient for the user to move and close to the table;

Foot pedal: the specification is 195x145mm, the material is impact resistant PP, and its surface is uniformly distributed with 171 cylindrical anti-skid bumps with a height of 1mm. The height of the foot pedal can be adjusted and reversed, with 4 adjustment gears. The foot pedal body can be rotated to the side and can be quickly removed;

Front wheel: Nylon plus fiber plastic front fork with red reflective sticker, and the diameter of the front wheel is Φ 188mm, tire width 40mm, rubber reinforced Quad gray wheel hub, PVC black smooth solid wear-resistant tire;

Rear wheel: 558mm (22 inch) diameter wheel set, aluminum alloy anodized fog surface wheel frame, black European straight drum, 36 steel wire spokes, high-quality black wavy four claw plastic hand ring, black wear-resistant Pu pattern solid tire, specification 22x1-3/8 inch;

The rear lower part of the frame is equipped with a barrier crossing pedal device, which is made of plastic nylon. It is convenient to tilt the car when crossing the sill. When the pedal device is not in use, it can be lifted up and closed, so as to avoid the hindrance when the caregiver pushes it in the rear;

Safety device: equipped with safety belt.

Product parameters：

Service state width (CM): 65

Width of folded state (CM) :29

Seat width (CM): 46

Rear wheel diameter (CM) :56

Front wheel diameter (CM) :20

Cushion height (CM): 50

Cushion depth (CM): 42

Total length (CM): 102

Total height (CM): 90

Backrest height (CM): 38

Maximum load (kg) :100

Net weight (kg):12.5

Carton l*w*h (CM): 79*30*73

pc/ctn： 1

Certificate：ISO13485/ ISO9001/ TUV/FDA/ CE

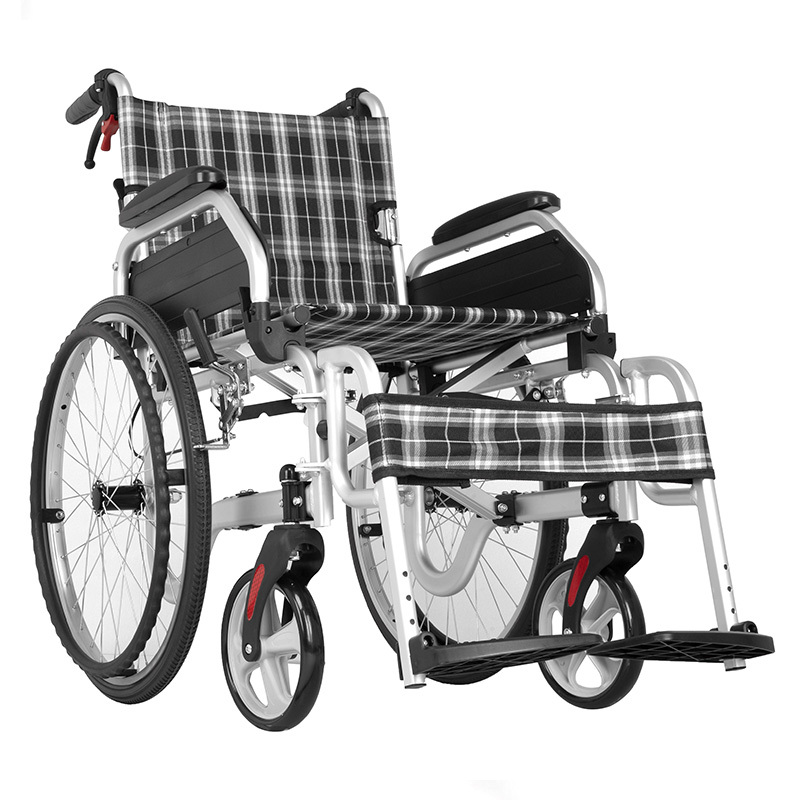

Product detail picture:
