Basic Aluminum Wheelchair

Product features：

(1) Frame: specification of frame body φ 22.2 * t2.0mm aluminum tube is welded and formed, and the main surface of the frame is sprayed with silver white and flashed, and the whole vehicle can be folded left and right;

(2) Cross pipe; Main pipe of cross pipe adopts Φ Composed of 22 round tubes and 18*11 square aluminum tubes, the double cross structure has a large stress area and a more stable frame;

(3) Seat back cushion: it adopts black patterned nylon cloth with thick sponge, with canvas lining for reinforcement and high tensile strength. The built-in sponge increases riding comfort. The seat cushion tube adopts an open tube, and both ends of the seat cushion directly penetrate into the whole face to bear force, so as to prevent the seat cushion from sagging and collapsing after sitting for a long time, widen the calf belt, with a width of 90mm, and make the legs more comfortable to lean on;

(4) Brake: the driving wheel is equipped with elbow type long rod iron brake, and the torsion spring is equipped with flexible return. The hand push tube is used Φ 22*t2.0mm aluminum round pipe, equipped with thickened PVC handle, the surface is soft and more comfortable to use, and the rear handle is equipped with continuous brake handle, which is safe and reliable;

(5) Armrest: Black PU short curved armrest pad, with ergonomic concave lines on the surface, making it more comfortable to use;

(6) Foot pedal: the material is impact resistant PP, and the height can be adjusted and lifted up;

(7) Front wheel: black plastic reinforced front fork, the diameter of the front wheel is Φ 150mm widened space wheel, gray wheel hub, red reflective sticker, black smooth PVC wear-resistant tire;

(8) Rear wheel: 560mm (22 inches) diameter Black PU tread tire, wavy hand concave hand ring, more comfortable to hold;

(9) Safety device: equipped with safety belt.

Product parameters：

Width in use (CM)： 59

Width of folded state (CM)： 27.5

Seat width (CM) ：42

Rear wheel diameter (CM) ：56

Front wheel diameter (CM)： 15

Cushion height (CM)：49

Cushion depth (CM)： 40

Total length (CM) ：102

Total height (CM)： 88

Backrest height (CM) ：39

Maximum load (kg) ：100

Net weight (kg) ：11.6

Carton (CM)： 89*27*72

pc/ctn： 1

Certificate：ISO13485/ ISO9001/ TUV/FDA/ CE

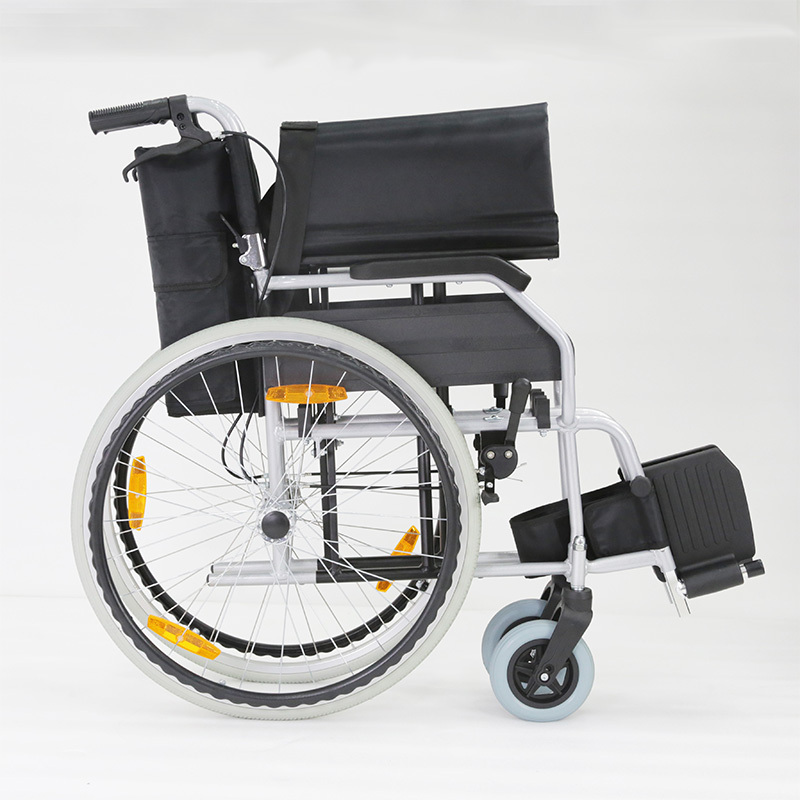

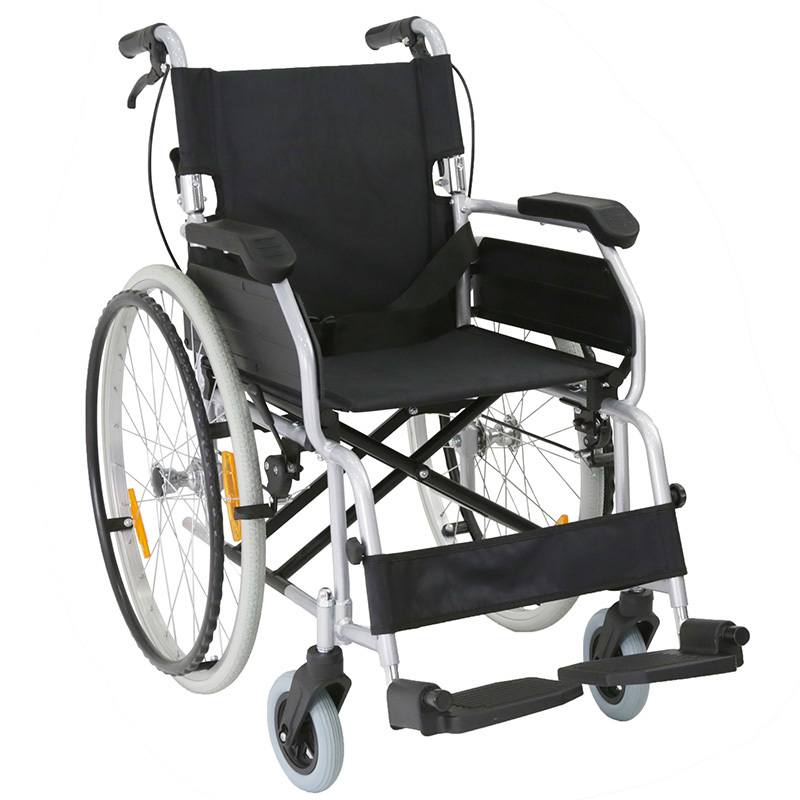

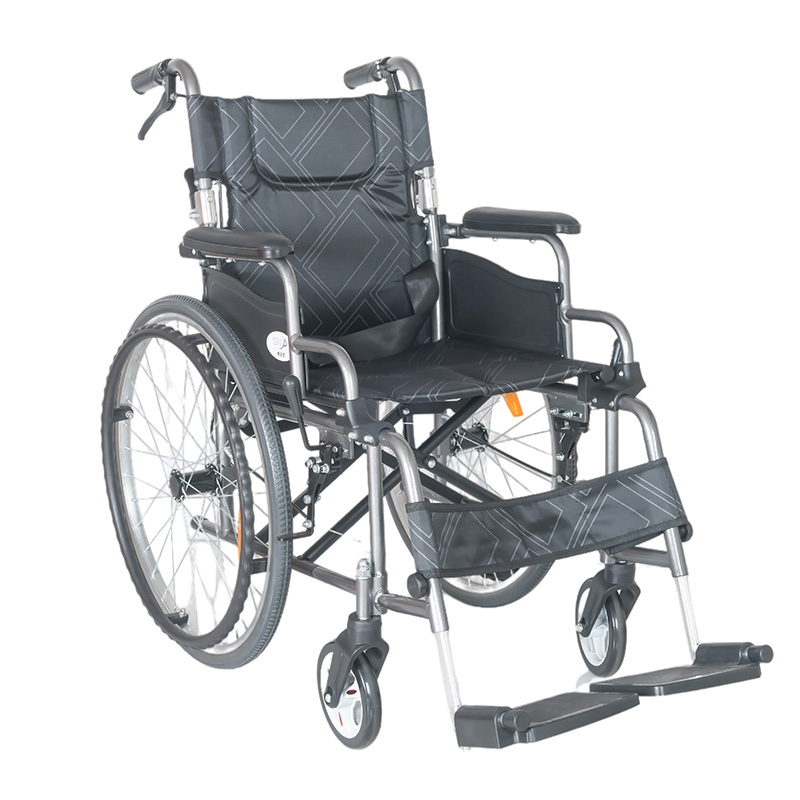

Product detail picture：

• aluminum folding wheelchairs
• deluxe flyweight folding wheelchair
• Basic wheelchair
